01 Series Hydraulic Modular Valve MCP-01 MCT-01 Modular Control Valve

Name: 01 Series Hydraulic Modular Valve MCP01 MCT01 Modular Control Valve
Brand: Seric
Price: 1 USD

Brand Name : Seric

Model Number : 01 Series

Certification : CE, ISO

Place of Origin : Guangzhou, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : T/T,L/C,Western Union

Supply Ability : 5000

Delivery Time : 1-15 days

Packaging Details : Carton Box/Wooden Case

After Warranty Service : Online Support

OEM : Accept

Condition : 100% Brand-new

Quality : High-Quality

Application : Industrial Machinery

Selling Units : Single item

Contact Now

Check Valves 01 Series Type Of Modular Valve MCP-01 MCT-01

Features

The modular valves are functional elements with which a hydraulic system can be composed and built easily by stacking them with the mounting bolts. Therefore, no piping is required for the manufacture of the hydraulic systems.

Seric's 01 Series Modular Valves are widely used to compose the hydraulic systems for the various industrial equipment including machine tools, special purpose machines and injection moulding machines.

The valves have standardized mounting surface conforming to ISO 4401-AB-03-4-A and optimum thickness for the stacking.

01 Series Hydraulic Modular Valve MCP-01 MCT-01 Modular Control Valve

Specifications

Model Numbers	Max. Operating Pressure MPa (PSI)	Max. Flow L /min (U.S.GPM)
MCP-01-∗-30	31.5 (4570)	35 (9.25)^★
MCT-01-∗-30	31.5 (4570)	35 (9.25)^★

Model Number Designation

F-	MCP	-1	0	-30
Special Seals	Series Number	Valve Size	Pres. Adj . Range MPa (PSI)	Design Number
F: Special Seals for Phosphate Ester Type Fluids (Omit if not required)	MCP: Check Valve for P-Line	1	0: 0.035 (5) 2: 0.2 (29) 4: 0.4 (58)	30
	MCT: Check Valve for T-Line	1	0: 0.035 (5) 2: 0.2 (29) 4: 0.4 (58)	30

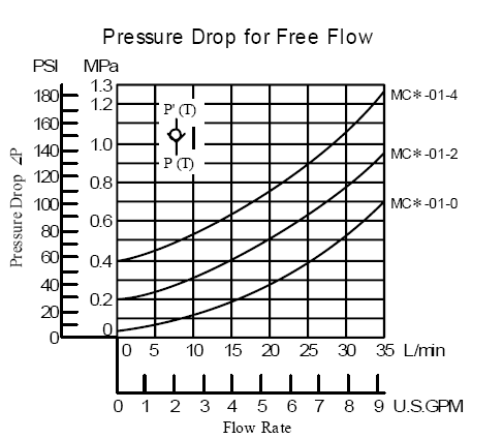

Typical Performance Characteristics

Hydraulic Fluid: Viscosity 35 mm²/ s (164 SSU), Specific Gravity 0.850

01 Series Hydraulic Modular Valve MCP-01 MCT-01 Modular Control Valve

MCP01-∗-30, MCT-01-∗-30

01 Series Hydraulic Modular Valve MCP-01 MCT-01 Modular Control Valve

Approx. Mass...... 1.1 kg (2.4 lbs.)
