V2010 And V2020 Series Hydraulic Double Vane Pump For Industrial Machinery

Product Categories
Guangzhou Seric Hydraulic Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

V2010 And V2020 Series Hydraulic Double Vane Pump For Industrial Machinery

Brand Name : Seric

Model Number : V2010 and V2020

Place of Origin : Guangzhou, China

MOQ : 1 Piece

Price : USD50.00

Payment Terms : T/T,L/C,Western Union

Supply Ability : 5000

Delivery Time : 1-15 days

Packaging Details : Carton Box/Wooden Case

Certification : CE, ISO

After Warranty Service : Online Support

OEM : Accept

Condition : 100% Brand-new

Quality : High-Quality

Application : Industrial Machinery

Selling Units : Single item

Contact Now

V2010 and V2020 Series Double Vane Pump

Features

Seric offers the most complete line of hydraulic pumps and motors for mobile and industrial applications.

Specifications

Based on using petroleum oil at 49° C (120°F), viscosity 32 cSt at 38°C (150 SUS at 100°F), and 0 psi inlet pressure

V2010 model series
 Ring size
(Delivery USgpm @ 1200 r/min & 100 psi)		 Displ.
cm³/r (in³/r)		 Max. speed
(r/min)		 Maximum pressure
bar (psi)		 Typical delivery
L/min (USgpm) @ max. speed & pressure		 Typical input power
kW (hp) @ max. speed & pressure		 Approx. total weight
kg (lb)
Shaft-end pump 6 19.5 (1.19) 3000 172 (2500) 54.9 (14.5) 18.3 (24.5) 　
7 22.8 (1.39) 3000 172 (2500) 62.5 (16.5) 22.4 (30) 13.6 (30)
8 26.5 (1.62) 2800 172 (2500) 66.2 (17.5) 24.2 (32.5) 　
9 29.7 (1.81) 2800 172 (2500) 75.7 (20) 26.8 (36) 　
11 36.4 (2.22) 2500 172 (2500) 87.1 (23) 28 (37.5) 　
12 39 (2.38) 2400 152 (2200) 87.1 (23) 26.8 (36) 　
13 42.4 (2.59) 2400 152 (2200) 98.4 (26) 29.1 (39) 　
Cover-end pump 1 3.3 (20) 3000 172 (2500) 7.6 (2) 3.4 (4.5) 　
2 6.6 (.40) 3000 172 (2500) 17.8 (4.7) 6.7 (9) 　
3 9.8 (.60) 3000 172 (2500) 26.5 (7) 10 (13.4) 　
4 13.1 (.80) 3000 172 (2500) 36 (9.5) 13.4 (18) 　
5 16.4 (1.00) 3000 172 (2500) 45.4 (12) 16 (21.5) 　
6 19.5 (1.19) 3000 152 (2200) 54.9 (14.5) 18.3 (24.5) 　
7 22.8 (1.39) 2800 138 (2000) 60.6 (16) 17.9 (24) 　

V2020 model series
 Ring size
(Delivery USgpm @ 1200 r/min & 100 psi)		 Displ.
cm³/r (in³/r)		 Max. speed
r/min		 Maximum pressure
bar (psi)		 Typical delivery
L/min (USgpm) @ max. speed & pressure		 Typical input power
kW (hp) @ max. speed & pressure		 Approx. total weight
kg (lb)
Shaft-end pump 12 39 (2.38) 2400 152 (2200) 87.1 (23) 26.8 (36)
13 42.4 (2.59) 2400 152 (2200) 98.4 (26) 29.1 (39) 15.9 (35)
Cover - or shaft-end pump 6 19.5 (1.19) 3000 172 (2500) 54.9 (14.5) 19.4 (26)
7 22.8 (1.39) 3000 172 (2500) 62.5 (16.5) 22.4 (30)
8 26.5 (1.62) 2800 172 (2500) 66.2 (17.5) 24.2 (32.5)
9 29.7 (1.81) 2800 172 (2500) 75.7 (20) 26.8 (36)
11 36.4 (2.22) 2500 172 (2500) 87.1 (23) 28 (37.5)

Model Number Designation

F3-
 V 2010- 1 F 13 S 3 S- 1 CC- 12- L
Special Seals Vane pump Series Mounting Inlet port connections Shaft-end pump ring size No. 1 outlet port (shaft end) Cover-end pump ring size No. 2 outlet port (cover end) Shafts Position of outlet Design Shaft rotation
Omit if not required. 2010 or 2020 1 - 2-bolt flange, 4.00" pilot (standard)

6 - 2-bolt flange, 3.25" pilot (optional)		 F - 4-bolt flange, 1.50 dia. (V2010)

F - 4-bolt flange, 2.00 dia. (V2020)		 (delivery at 1200 rpm & 100 psi)

6 - 6 USgpm

7 - 7 USgpm

8 - 8 USgpm

9 - 9 USgpm

11 - 11 USgpm

12 - 12 USgpm

13 - 13 USgpm		 S - 1.062-12 UN-2B thd. (delivery at 1200 r/min and 100 psi)

V2010:
1 - 1 USgpm
2 - 2 USgpm
3 - 3 USgpm
4 - 4 USgpm
5 - 5 USgpm
6 - 6 USgpm
7 - 7 USgpm

V2020:
6 - 6 USgpm
7 - 7 USgpm
8 - 8 USgpm
9 - 9 USgpm
11 - 11 USgpm		 S - .750-16 St. Thd. (V2010)

S - 1.062-12 St. Thd. (V2020)		 1 - Straight keyed

11 - Splined		 (Viewed from cover end of pump)

V2010:
With no. 1 outlet opposite inlet
AA - No. 2 outlet opposite inlet
AB - No. 2 outlet 135° CCW from inlet
AC - No. 2 outlet 45° CCW from inlet
AD - No. 2 outlet 135° CW from inlet

With no. 1 outlet 90° CCW from inlet
BA - No. 2 outlet opposite inlet
BB - No. 2 outlet 135° CCW from inlet
BC - No. 2 outlet 45° CCW from inlet
BD - No. 2 outlet 135° CW from inlet

With no. 1 outlet in line with inlet
CA - No. 2 outlet opposite inlet
CB - No. 2 outlet 45° CCW from inlet
CC - No. 2 outlet in line with inlet
CD - No. 2 outlet 135° CW from inlet

With no. 1 outlet 90° CW from inlet
DA - No. 2 outlet opposite inlet
DB - No. 2 outlet 135° CCW from inlet
DC - No. 2 outlet 45° CW from inlet
DD - No. 2 outlet 135° CW from inlet		 12 - V2010 series

30 - V2020 series

Subject to change.		 (Viewed from shaft end of pump)

L - Left hand for counterclockwise

Omit for right hand
V2020:
With no. 1 outlet opposite inlet
AA - No. 2 outlet opposite inlet
AB - No. 2 outlet 90° CCW from inlet
AC - No. 2 outlet in line with inlet
AD - No. 2 outlet 90° CW from inlet

With no. 1 outlet 90° CCW from inlet
BA - No. 2 outlet opposite inlet
BB - No. 2 outlet 90° CCW from inlet
BC - No. 2 outlet in line with inlet
BD - No. 2 outlet 90° CW from inlet

With no. 1 outlet in line with inlet
CA - No. 2 outlet opposite inlet
CB - No. 2 outlet opposite inlet
CC - No. 2 outlet in line with inlet
CD - No. 2 outlet 90° CW from inlet

With no. 1 outlet 90° CW from inlet
DA - No. 2 outlet opposite inlet
DB - No. 2 outlet 90° CCW from inlet
DC - No. 2 outlet in line with inlet
DD - No. 2 outlet 90° CW from inlet


Product Tags:

V2010 Hydraulic Double Vane Pump



V2020 Hydraulic Double Vane Pump

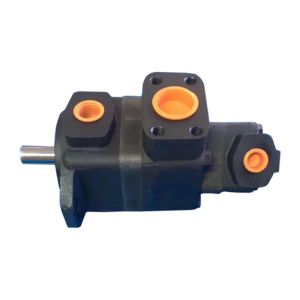

Wholesale V2010 And V2020 Series Hydraulic Double Vane Pump For Industrial Machinery from china suppliers
